Simplest Arduino based thermometer using LM35 and LCD i2c screen
Hello there, this is an easy project to start with if you’re new to Arduino, this is my first project and pretty much my first contact with Arduino World.
It’s an easy thermometer, temperature sensor used with Arduino and a LCD i2c screen. It measures and shows the ambient temperature in °C.
The LM35z has a range of 0-100°C, linear, has an Analog output and can be used in all standard applications.

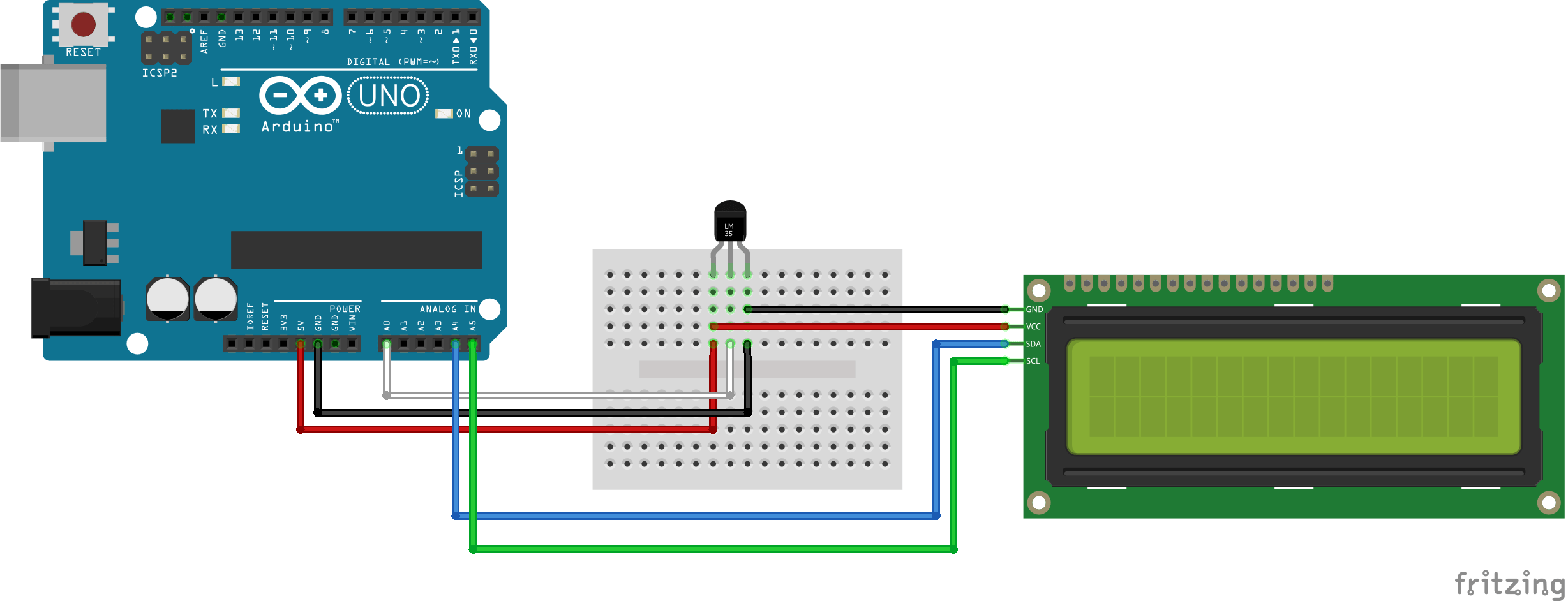

Wiring:

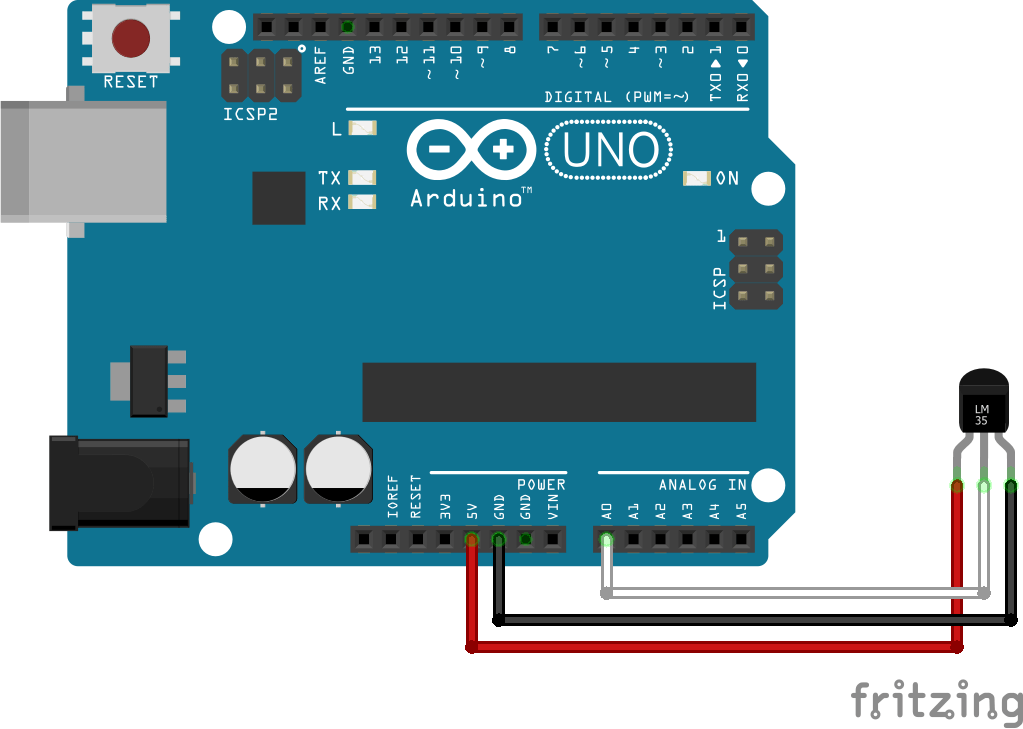

The wiring is easy as well, the sensor pins are VCC/OUT/GND are wired with respectively 5V/A0/GND.
A0 or any analog input will do the work, but don’t forget to modify the code.
The LCD i2c has 4 pins GND/VCC/SDA/SCL are wired respectively with GND/5V/A4/A5.
Libraries:
The only library I used is the LCD i²c New _liquid_crystal, you can use any library you want just adapt the functions.
In case you use a standard LCD you’ll need another library and suitable functions.
LCD i2c Library: Download library
Code:
Download the code here: Download .ino or:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 |
//Arduino Thermometer using LM35DZ sensor with a LCD display //SurtrTech Youtube channel #include <Wire.h> //Libraries for I2C and LCD #include <LCD.h> #include <LiquidCrystal_I2C.h> float temp; //Variable where we will stock the temperature value int tempPin = 0; //Pin used with the sensor output here it's A0 #define I2C_ADDR 0x27 //I2C Adress #define BACKLIGHT_PIN 3 //LCD Stuffs :D #define En_pin 2 #define Rw_pin 1 #define Rs_pin 0 #define D4_pin 4 #define D5_pin 5 #define D6_pin 6 #define D7_pin 7 LiquidCrystal_I2C lcd(I2C_ADDR,En_pin,Rw_pin,Rs_pin,D4_pin,D5_pin,D6_pin,D7_pin); void setup() { Serial.begin(9600); lcd.begin (16,2); lcd.setBacklightPin(BACKLIGHT_PIN,POSITIVE); lcd.setBacklight(HIGH); lcd.home (); } void loop() { temp = analogRead(tempPin); //Reading the value from the analog input temp = temp * 0.48828125; //Sensor calibration to get the real value lcd.clear(); lcd.setCursor (0,0); //Start writing on 0.0 on lcd screen lcd.print("Temperature"); lcd.setCursor (0,1); lcd.print(temp); //Temperature value lcd.print(" C"); //Celsius of course :D delay(1000); //Refresh every 1s } |
Categories
Yassine View All
Automation and Electrical Engineer, Electronics amateur trying to share my little projects.
Good night;
Below is the correct Source Code, since the one on your Site contains some errors:
//Arduino Thermometer using LM35DZ sensor with a LCD display
//SurtrTech Youtube channel
#include //Libraries for I2C and LCD
#include
#include
float temp; //Variable where we will stock the temperature value
int tempPin = 0; //Pin used with the sensor output here it’s A0
#define I2C_ADDR 0x27 //I2C Adress
#define BACKLIGHT_PIN 3 //LCD Stuffs 😀
#define En_pin 2
#define Rw_pin 1
#define Rs_pin 0
#define D4_pin 4
#define D5_pin 5
#define D6_pin 6
#define D7_pin 7
LiquidCrystal_I2C lcd(I2C_ADDR,En_pin,Rw_pin,Rs_pin,D4_pin,D5_pin,D6_pin,D7_pin);
void setup() {
Serial.begin(9600);
lcd.begin (16,2);
lcd.setBacklightPin(BACKLIGHT_PIN,POSITIVE);
lcd.setBacklight(HIGH);
lcd.home ();
}
void loop()
{
temp = analogRead(tempPin); //Reading the value from the analog input
temp = temp * 0.48828125; //Sensor calibration to get the real value
lcd.clear();
lcd.setCursor (0,0); //Start writing on 0.0 on lcd screen
lcd.print(“Temperature”);
lcd.setCursor (0,1);
lcd.print(temp); //Temperature value
lcd.print(” C”); //Celsius of course 😀
delay(1000); //Refresh every 1s
}
ERROR MESSAGE – Arduino: 1.8.13 (Windows Store 1.8.42.0) (Windows 10), Board: “Arduino Uno”
LM35_temperature_display_on_I2C_LCD:5:37: error: #include expects “FILENAME” or
#include //Libraries for I2C and LCD
^
LM35_temperature_display_on_I2C_LCD:7:9: error: #include expects “FILENAME” or
#include
^
LM35_temperature_display_on_I2C_LCD:9:9: error: #include expects “FILENAME” or
#include
^
exit status 1
#include expects “FILENAME” or
This report would have more information with
“Show verbose output during compilation”
option enabled in File -> Preferences.
