How to simply use DS1302 RTC module with Arduino board and LCD screen

Hello there,

In this tutorial we gonna use DS1302 Real Time Clock module with Arduino board. This module can be set up via an Arduino code and then you can use it as you want, for example to show time/date a screen or to log some sensor values by time or setting sleep and wake modes, similar modules are used in computers, phones, TVs…. it always has a battery cell that can last long enough so even if the device is not powered the time keeps updating.

Here are some projects I did with this module:

Or some similar modules:

For this we gonna need:

RTC DS1302 module.
Arduino board, here I’m using Uno.
LCD i2c screen, optionnal if you want to visualize date/time on your screen. If you don’t know how to use one check here.
Some jump wires.
And 1k Resistor if you have the same problem as I had (check the video).

Libraries

Here are the libraries you’ll need for this, download them here:

Wirings and Codes

Here I gathered all codes I used, you can download them here: RTC codes I’ve used “.ino”, or check below and copy them.

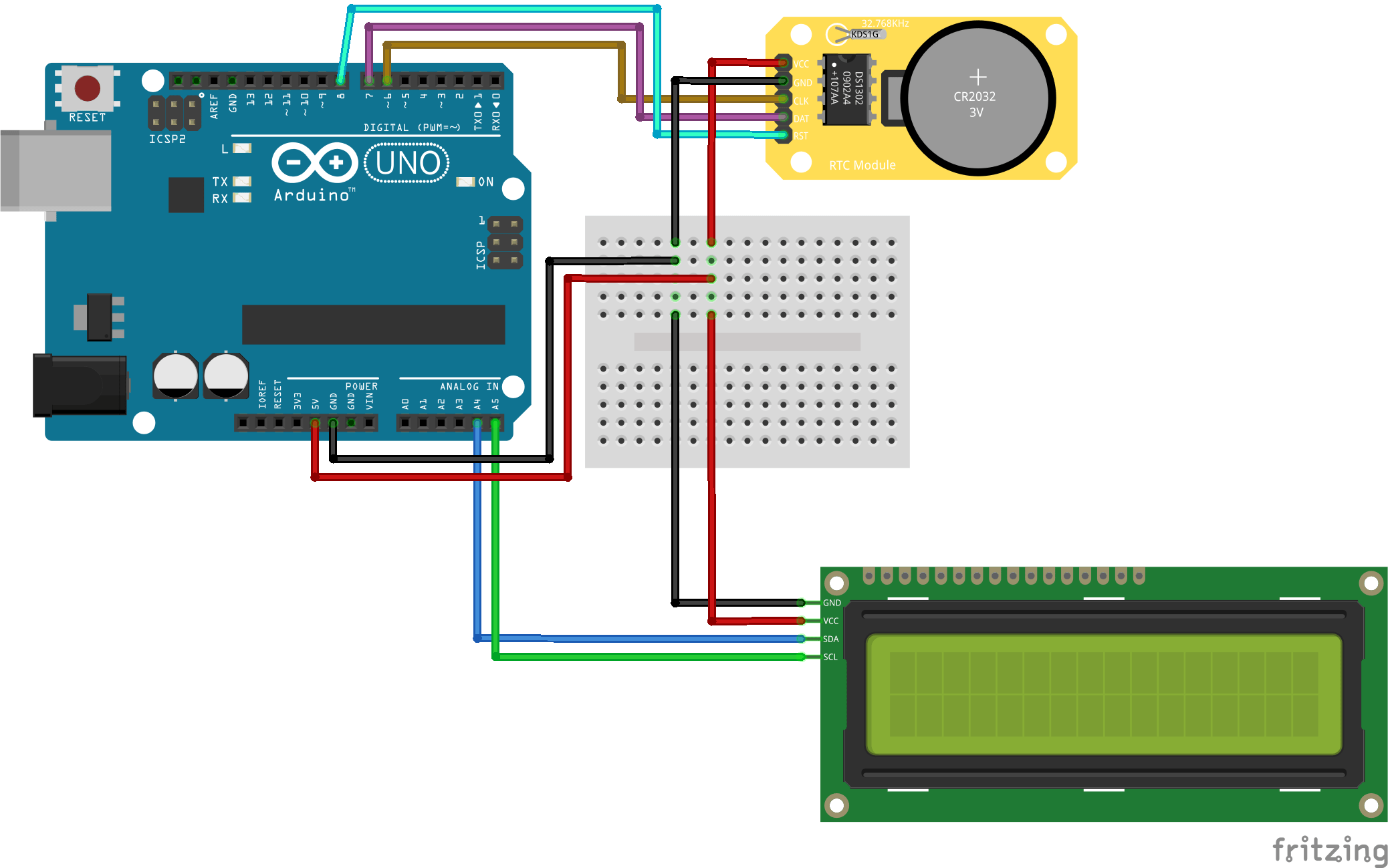

Wiring 1: Setup the module from the IDE and show the time on the Serial monitor

Code 1 : Setting the time and date of the module and showing it on the serial monitor

This code will permit you to set the DS1302 and then display date and time on the serial monitor.

Please read carefully the code below, the line

myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018);

1	myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018);

Permits you to set the module on the given values (numbers typed there), you have to set it up to your current date/time and then comment it

//myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018);

1	//myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018);

And reupload the code again to the Arduino with removed or commented (//) “setDS1302Time” function, so when you restart your Arduino the program doesn’t execute the function again.

Code 1:

//This code is to use with DS1302 RTC module, it permits you to setup the actual time and date
//And you can visualize them on the serial monitor
//This code is a modified version of the code provided in virtuabotixRTC library
//Refer to https://Surtrtech.com for more information

#include <virtuabotixRTC.h> //Library used

//Wiring SCLK -> 6, I/O -> 7, CE -> 8
//Or CLK -> 6 , DAT -> 7, Reset -> 8

virtuabotixRTC myRTC(6, 7, 8); //If you change the wiring change the pins here also

void setup() {
 Serial.begin(9600);

// Set the current date, and time in the following format:
 // seconds, minutes, hours, day of the week, day of the month, month, year
 myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018); //Here you write your actual time/date as shown above
 //but remember to "comment/remove" this function once you're done
 //The setup is done only one time and the module will continue counting it automatically
}

void loop() {
 // This allows for the update of variables for time or accessing the individual elements.
 myRTC.updateTime();

// Start printing elements as individuals
 Serial.print("Current Date / Time: ");
 Serial.print(myRTC.dayofmonth); //You can switch between day and month if you're using American system
 Serial.print("/");
 Serial.print(myRTC.month);
 Serial.print("/");
 Serial.print(myRTC.year);
 Serial.print(" ");
 Serial.print(myRTC.hours);
 Serial.print(":");
 Serial.print(myRTC.minutes);
 Serial.print(":");
 Serial.println(myRTC.seconds);

// Delay so the program doesn't print non-stop
 delay(1000);
}

//This code is to use with DS1302 RTC module, it permits you to setup the actual time and date

//And you can visualize them on the serial monitor

//This code is a modified version of the code provided in virtuabotixRTC library

//Refer to https://Surtrtech.com for more information

#include <virtuabotixRTC.h> //Library used

//Wiring SCLK -> 6, I/O -> 7, CE -> 8

//Or CLK -> 6 , DAT -> 7, Reset -> 8

virtuabotixRTC myRTC(6, 7, 8); //If you change the wiring change the pins here also

void setup() {

Serial.begin(9600);

// Set the current date, and time in the following format:

// seconds, minutes, hours, day of the week, day of the month, month, year

myRTC.setDS1302Time(15, 22, 21, 7, 14, 1, 2018); //Here you write your actual time/date as shown above

//but remember to "comment/remove" this function once you're done

//The setup is done only one time and the module will continue counting it automatically

}

void loop() {

// This allows for the update of variables for time or accessing the individual elements.

myRTC.updateTime();

// Start printing elements as individuals

Serial.print("Current Date / Time: ");

Serial.print(myRTC.dayofmonth); //You can switch between day and month if you're using American system

Serial.print("/");

Serial.print(myRTC.month);

Serial.print("/");

Serial.print(myRTC.year);

Serial.print(" ");

Serial.print(myRTC.hours);

Serial.print(":");

Serial.print(myRTC.minutes);

Serial.print(":");

Serial.println(myRTC.seconds);

// Delay so the program doesn't print non-stop

delay(1000);

}

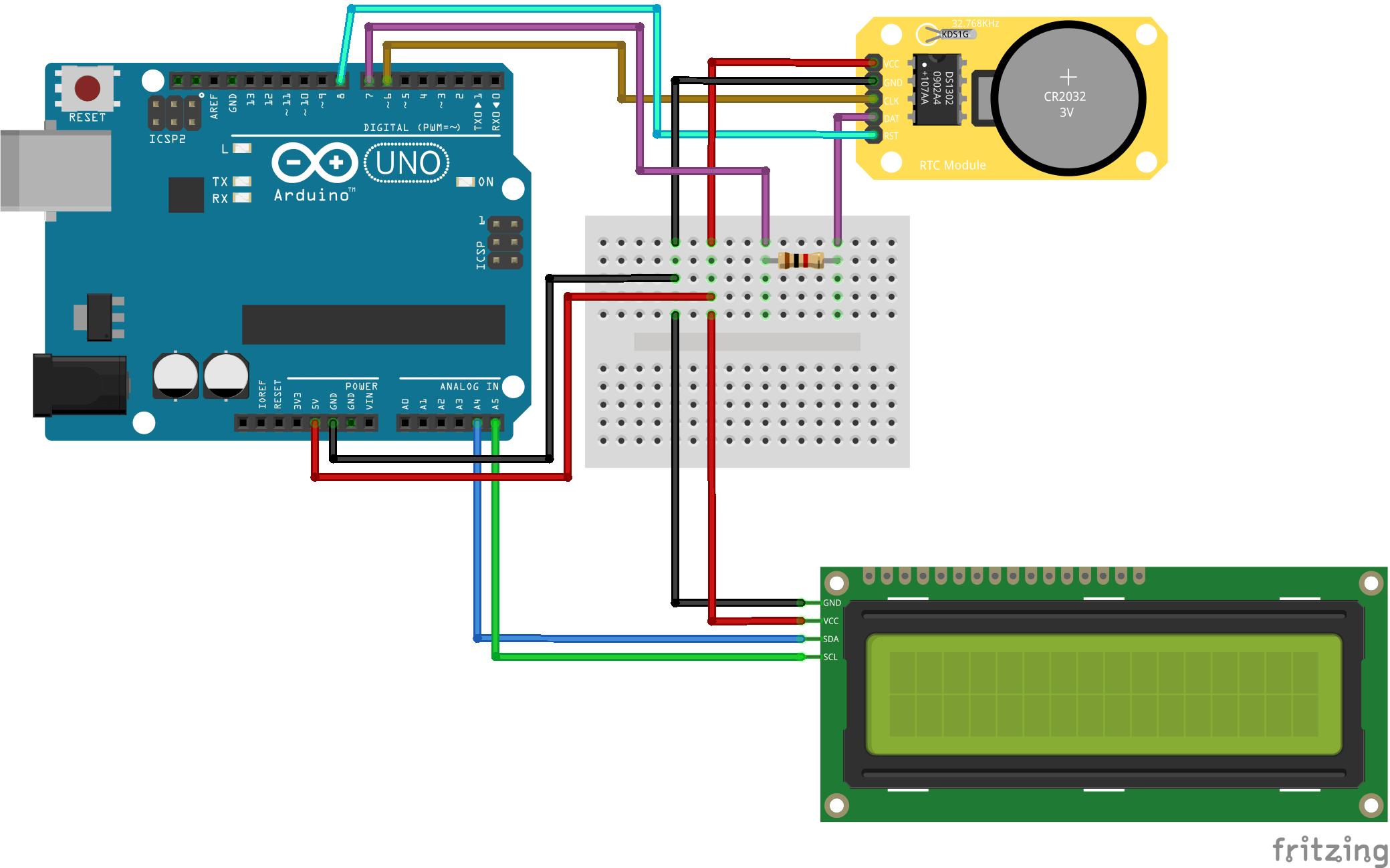

Wiring 2: Add LCD i2c Screen and solving the grounding problem if you encounter it

DS1302 and LCD i²c, the resistor is optional, only if you have the mentioned problem

Code 2: Showing the Date/Time on a LCD i2c screen

This code uses the LCD i²c screen, optional of course, be careful again with “SetDS1302Time” function again (read above).

//This code is to use with DS1302 RTC module, it permits you to setup the actual time and date
//And you can visualize them on the LCD i2c screen
//This code is a modified version of the code provided in virtuabotixRTC library
//Refer to https://Surtrtech.com for more information

#include <virtuabotixRTC.h> //Libraries needed
#include <LiquidCrystal_I2C.h>

#define I2C_ADDR 0x27 //LCD i2c stuff
#define BACKLIGHT_PIN 3
#define En_pin 2
#define Rw_pin 1
#define Rs_pin 0
#define D4_pin 4
#define D5_pin 5
#define D6_pin 6
#define D7_pin 7

LiquidCrystal_I2C lcd(I2C_ADDR,En_pin,Rw_pin,Rs_pin,D4_pin,D5_pin,D6_pin,D7_pin);
//Wiring SCLK -> 6, I/O -> 7, CE -> 8
//Or CLK -> 6 , DAT -> 7, Reset -> 8

virtuabotixRTC myRTC(6, 7, 8); //If you change the wiring change the pins here also


void setup() {
 Serial.begin(9600);
 lcd.begin (16,2); //Initialize the LCD
 lcd.setBacklightPin(BACKLIGHT_PIN,POSITIVE);
 lcd.setBacklight(HIGH);
 lcd.home ();
 myRTC.setDS1302Time(15, 31, 15, 5, 12, 1, 2018); //Here you write your actual time/date as shown above
 //but remember to "comment/remove" this function once you're done as I did
 //The setup is done only one time and the module will continue counting it automatically

}

void loop() {
 lcd.clear(); //Here after clearing the LCD we take the time from the module and print it on the screen with usual LCD functions
 myRTC.updateTime();
 lcd.setCursor(0,0);
 lcd.print(myRTC.dayofmonth);
 lcd.print("/");
 lcd.print(myRTC.month);
 lcd.print("/");
 lcd.print(myRTC.year);
 lcd.setCursor(0,1);
 lcd.print(myRTC.hours);
 lcd.print(":");
 lcd.print(myRTC.minutes);
 lcd.print(":");
 lcd.print(myRTC.seconds);
 delay(1000);
}

//This code is to use with DS1302 RTC module, it permits you to setup the actual time and date

//And you can visualize them on the LCD i2c screen

//This code is a modified version of the code provided in virtuabotixRTC library

//Refer to https://Surtrtech.com for more information

#include <virtuabotixRTC.h> //Libraries needed

#include <LiquidCrystal_I2C.h>

#define I2C_ADDR 0x27 //LCD i2c stuff

#define BACKLIGHT_PIN 3

#define En_pin 2

#define Rw_pin 1

#define Rs_pin 0

#define D4_pin 4

#define D5_pin 5

#define D6_pin 6

#define D7_pin 7

LiquidCrystal_I2C lcd(I2C_ADDR,En_pin,Rw_pin,Rs_pin,D4_pin,D5_pin,D6_pin,D7_pin);

//Wiring SCLK -> 6, I/O -> 7, CE -> 8

//Or CLK -> 6 , DAT -> 7, Reset -> 8

virtuabotixRTC myRTC(6, 7, 8); //If you change the wiring change the pins here also

void setup() {

Serial.begin(9600);

lcd.begin (16,2); //Initialize the LCD

lcd.setBacklightPin(BACKLIGHT_PIN,POSITIVE);

lcd.setBacklight(HIGH);

lcd.home ();

myRTC.setDS1302Time(15, 31, 15, 5, 12, 1, 2018); //Here you write your actual time/date as shown above

//but remember to "comment/remove" this function once you're done as I did

//The setup is done only one time and the module will continue counting it automatically

}

void loop() {

lcd.clear(); //Here after clearing the LCD we take the time from the module and print it on the screen with usual LCD functions

myRTC.updateTime();

lcd.setCursor(0,0);

lcd.print(myRTC.dayofmonth);

lcd.print("/");

lcd.print(myRTC.month);

lcd.print("/");

lcd.print(myRTC.year);

lcd.setCursor(0,1);

lcd.print(myRTC.hours);

lcd.print(":");

lcd.print(myRTC.minutes);

lcd.print(":");

lcd.print(myRTC.seconds);

delay(1000);

}
